Topleading Intel provides high-efficiency, high-precision testing and sorting solutions for discrete components, including chip capacitors, resistors, and tantalum capacitors.Our systems utilize a mature turret platform combined with self-developed AI vision inspection and electrical testing software to ensure automotive-grade reliability and Industry 4.0 compatibility.

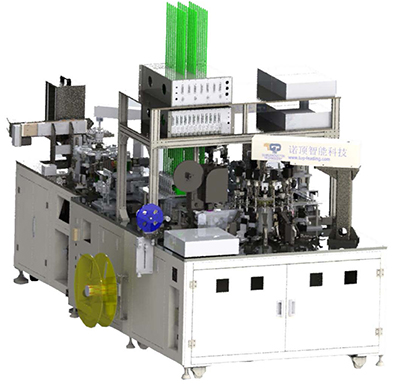

Ultra-High Speed & Industry-Leading Precision

• Key Features:

Throughput: Exceptional UPH up to 60K.

Ultra-Miniature Support: Compatible with 01005 size (the industry's smallest: $0.2\times 0.1mm$).

High Precision: Positioning accuracy of $0.001mm$

• Technical Highlights:

Modular Design: Flexible integration of vision and electrical test modules to meet specific defect detection needs.

Special Environments: Supports TCR, high-voltage, and high/low temperature testing.

• Applications: Single-layer chip capacitors, MLCC, and chip resistors.

Automotive-Grade Reliability (AEC-Q200)

• Measurement Excellence: Covers a wide resistance range from $1\Omega$ to $15G\Omega .$
• Advanced Testing Capabilities:

Dynamic TCR: Automatic measurement at user-defined temperature points for high-temperature TCR testing.

Safety & Durability: Includes DC Withstand Voltage (WV) and Pulse Withstand testing to filter out devices with surge vulnerabilities.

• Throughput: 7K UPH.

Smart Safety & Comprehensive Voltage Coverage

• Voltage Range: Provides high-voltage testing up to $150VDC$, covering the full series of tantalum capacitors.
• Key Features:

100% Polarity Check: Ensures correct positive and negative orientation.

Multi-Layer Safety: Intelligent protection system for overcurrent, ESD, fire, and impact.

• Applications: High-density storage chip stacking and advanced memory packaging.

• Flexible Three-in-One Detection: Designed for low-volume, high-variety production with a flexible mechanical platform. It supports components as small as $0.254\times 0.254mm$ with a throughput of up to 2K UPH.
• Desktop Tri-Temperature Sorter: Offers active temperature control from -55℃ to 125℃, featuring a dry gas purge to prevent condensation during low-temperature testing.
• BNx-3000 Burn-in System: Supports up to 20,000 channels for independent monitoring and precise control (RT to 150℃). Includes an energy-saving feedback load system.

Technical Advantages

• AI-Powered Vision: Self-developed AI software framework for high-precision defect analysis.
• Data Management: Full storage of images and test data for historical traceability and smart monitoring.
• Industry 4.0 Ready: Standard API interfaces to assist customers in achieving digitalized and intelligent manufacturing.
